with appropriate changeable parts and accessories

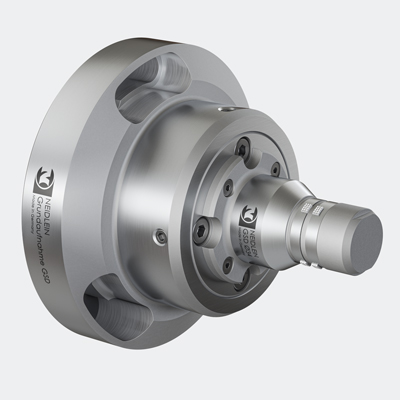

Sliding jaw mandrel GSD
  • Internal clamping between centers
  • For work pieces with bore hole diameters ≥Ø18
  • Run out deviation <0,01
  • High torque transmission
Sliding jaw mandrel GSD
Face driver FSBH
  • Concentric positioning of the center pin by hydraulic compensation
  • Thereby the max. run out deviation is ≤0,012
  • No clamping cylinder needed
  • Available clamping diameters starting from Ø34 (size3)
Face driver FSBH
Bull nose live center RK
  • Work piece weight up to 5000kg* (*load data upon request)
  • Retaining of big work piece center holes up to Ø340
  • Premium roller bearings with life time lubrication
Bull nose live center RK
Face driver FSBR/SBR
0,015
  • For high run out requirements while using a movable center pin ≤0,015
  • High process reliability for small work pieces
  • Center body and drive pins secured to prevent falling out
Face driver FSBR/SBR
Ultra Live Centers RNWF
0,01
incl. insert
  • Springloaded
  • Available with VDI and morsetaper retainer
  • For changeable inserts designed by Neidlein
Ultra Live Centers RNWF (VDI/MK)
FE / FEC
0,002
  • For use in EMAG and other production machines
  • Taper 1:7.5
  • With extraction screw thread
  • Available made of tool steel and with carbide tip
デッドセンター FE / FEC
