For setting up and checking the clamping thrust required, it is necessary to have a thrust indicator. A pressure gauge on the machine without tabulation or conversion is insufficient.
The hydraulic thrust measuring system is perfectly suitable for safe adjusting and checking of the clamping thrust within the machine.
Thrust indicator
Device for measuring clamping thrust in machine tools
All thrust indicators are equipped with a differential thrust indicator as well as a centered tailstock piece.
In order to ensure a perfect torque transmission of the face drivers onto the work piece, it is essential to determine the chisel load of the drive pins accurately.
Thrust piece
interim plate on face driver
In order to measure the impact of thrust onto the face driver, it is essential to have an adapter plate for parallel and even contact of the drive pins.

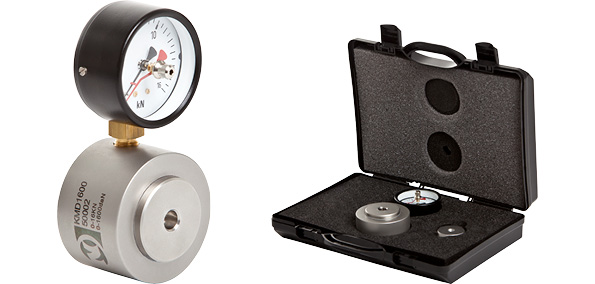

Type KMD
thrust indicator including centered tailstock piece and case
