FACE DRIVERS

with appropriate changeable parts and accessories

Turning
Hard Turning

FOR TURNING AND HARD TURNING

with drive pins

FSB/SB
0,02
  • Movable center pin
  • Datum-point location at the workpiece face side
  • No clamping cylinder needed
  • Run-out deviation in the process 0.015 - 0.02 mm
Face Driver FSB/SB
FFB/FFBH
0,005
  • Fixed center pin
  • Datum-point location in the center of the workpiece
  • Clamping cylinder needed (approx. 3000N - 15000N)
  • Run-out deviation in the process 0.005 - 0.01 mm (FFB) and 0.002 – 0.005 (FFBH)
Face Driver FFB/FFBH
Face Driver FSBR/SBR
0,015
  • High process reliability for small work pieces
  • Center body and drive pins secured to prevent falling out
  • Run-out deviation in the process 0.01-0.015 mm (while using a movable center pin)
Face Driver FSBR/SBR
Turning
Hard Turning
Grinding

FOR TURNING, HARD TURNING AND GRINDING

with drive disks

FSB/SB/SP
0,02
  • Movable center pin
  • Datum-point location at the workpiece face side
  • No clamping cylinder needed
  • Run-out deviation in the process 0.015 - 0.02 mm
Face Driver FSP/FSPB/SP
FSB/SB
0,01
  • Fixed center pin
  • Datum-point location in the center of the workpiece
  • Clamping cylinder needed (approx. 3000 - 15000N)
  • Run-out deviation in the process 0.005 - 0.015 mm
Face Driver FFP
Grinding

FOR GRINDING

with drive pins

FFBR/FBSR
0,005
  • Fixed center pin
  • Datum-point location in the center of the workpiece
  • Clamping cylinder needed (approx. 2000N – 9000N)
  • Retractable drive pins
  • Run-out deviation in the process 0.002 - 0.005 mm
Face Driver FFBR/FBSR
FFB/FFBH
0,005
  • Fixed center pin
  • Datum-point location in the center of the workpiece
  • Clamping zylinder needed (approx. 1500N – 12000N)
  • Needed tailstock force: approx. 2000N - 15000N
  • run-out deviation in the process 0.005 - 0.01 mm (FFB) and 0.002 - 0.005 mm (FFBH)
Face Driver FFB/FFBH
Milling
Millturning

FOR MILLING AND MILLTURNING

with drive heads and drive disks

FDNC
0,02
  • Movable center pin
  • Datum-point location at the workpiece face side
  • Machining free from backlash due to fixed drive heads
  • run-out deviation in the process 0.015 - 0.02 mm (a machined and rectangular face side of the workpiece is required)
Face Driver FDNC
FSPV/SPV
0,02
  • Movable center pin
  • Datum-point location at the workpiece face side
  • Machining free from backlash due to clamped driving elements
  • No clamping cylinder needed
  • Run-out deviation in the process 0.015 - 0.02 mm

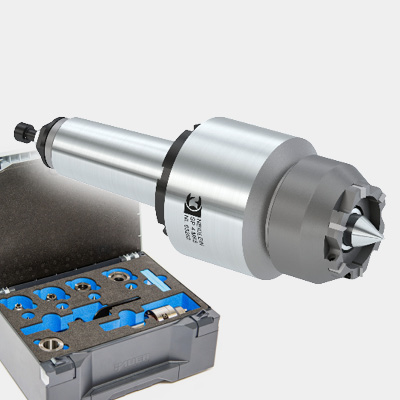

Face Driver FSPV/FSPBV/SPV
FFPV
0,015
  • Fixed center pin
  • Datum-point location in the center of the workpiece
  • Machining free from backlash due to clamped driving elements
  • Clamping zylinder needed (approx. 2500N - 13000N)
  • Run-out deviation in the process 0.005 - 0.015 mm
Face Driver FFPV
