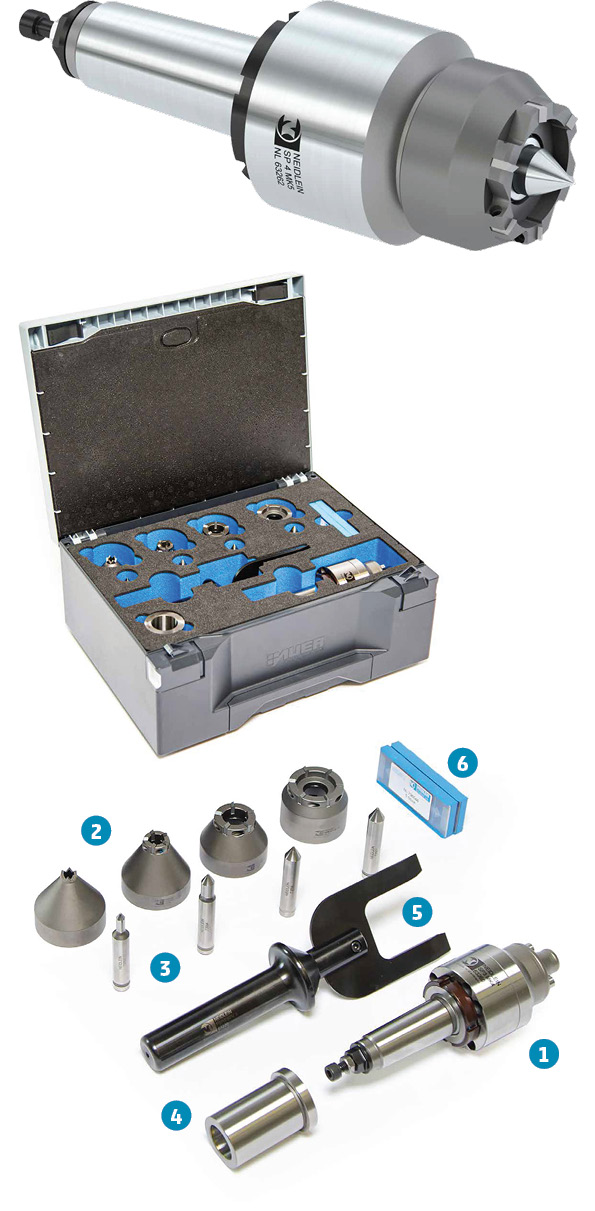

Face Drivers Set SPV in a case

Universal face driver set for use in turning or turn-milling operations.

The case set including face drivers type SP / SPV, drive disks and movable center pins, features high flexibility and a easy set up to the machine spindle..

NNEIDLEIN face drivers SPV ensure:

• a maximum of torque transmission, thus achieving high metal removing rates
• datum-point at the face end of the workpiece, stable datum-point in case of different centerings
• compensating drive disk for uneven face sides
• high flexibility in the application, wide range of clamping diameters
• fixed center pin in clamped condition » fixed clamping point
• run-out deviation in the process: 0.015 - 0.02 mm
• adjustable spring force (depending on the weight of the workpiece)
• low setup costs due to fast change of drive disks and center pins
• cost efficient exchange of parts that are in contact with the workpiece (changeable carbide inserts)
